Estis by Flowco

3306NA-JGQ/2 – The Wolf

Engineered for speed, power, and efficiency — delivering tested, ready-to-run equipment to get you online faster.

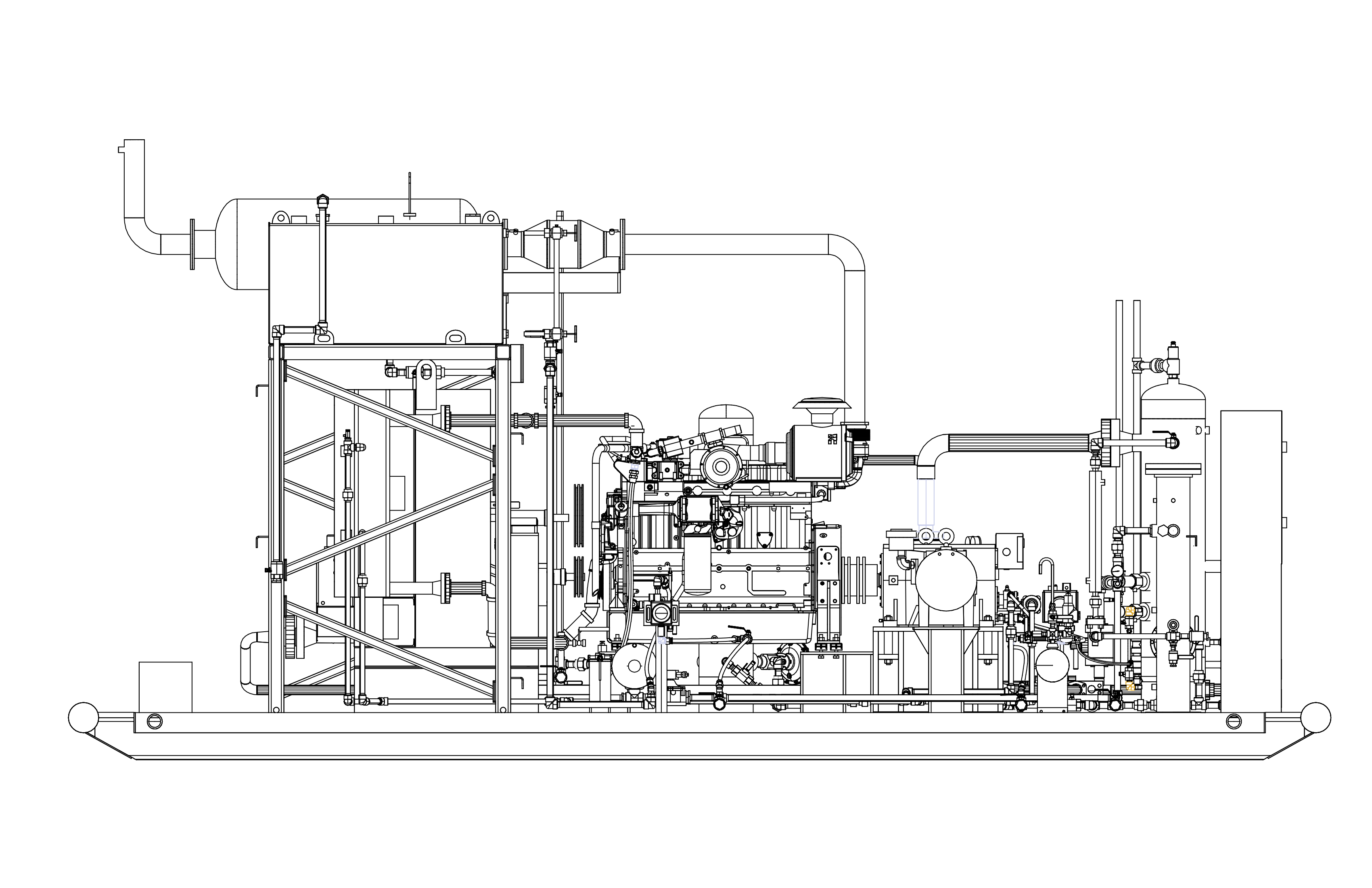

Dashboard mockup
3306NA-JGQ/2 – The Wolf

Key Specs

Horsepower: 145 HP @ 1800 RPM
Dimensions: 20’L x 9’ W x 10' H
Control system: Murphy EICS
Let's Talk->
3306NA-JGQ/2 – The Wolf

Key Highlights

Explore how the 3306NA-JGQ/2 - The Wolf compressor package might be the right solution for you.

High Discharge Pressure

No need for gas lift valves

Two Stage Operation

Leads to increased flow rate at lower pressures

World-Class Component OEMs

For reliability and confidence in the field

Trailer-Mounted Version Available

Ideal for unloading wells and well dewatering

3306NA-JGQ/2 – The Wolf

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance
Piping adheres to ASME B31.3
API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
Murphy Centurion Panel
Rugged four-runner I-beam skid with environmental containment
Coalescing type fuel gas filter installed for maximum engine protection
Inlet spool piece with basket strainer
Suction-based speed control
Automatic cooler louvers
Scrubber heat tracing virtually eliminates frozen dump valves
Insulated scrubbers
Shell and tube fuel line heater
Oil day tank included for simpler unit mobilization
3306NA-JGQ/2 – The Wolf

Engine: Caterpillar 3306BNA

Dependable industry standard G3300 platform backed by Caterpillar's global dealer network
Engine Integrated Control System (EICS®)
145 HP @ 1800 RPM
1.0 NOx, 2.0g CO standard emissions setting
Onboard alternator for reliable 24V power
Electric starter (24V) for reliable starting independent of gas supply
Operator interface included for setup and service without a laptop
Pressure-based automatic speed control
Dashboard mockup
Estis Compressor 700HP

Introduction: Product Section 1

Horsepower: 700HP @ 1785 rpm
Dimensions: 34’ L X 13’ W X 11’ H
Weight: 75,000 lbs
Control system: Murphy/TECO
Get started
Cylinder
Size
Pressure
1st Stage Cylinder
2.75” SG-CE
3000 psig
2nd Stage Cylinder
1.625" SG-FS-HE
6100 psig
3306NA-JGQ/2 – The Wolf

Compressor: Ariel JGQ/2

  • World-class compressor backed by the Ariel service and support network
  • Available 72-month warranty
Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 2

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 3

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

McClung

McClung Energy Services is the upstream oil and gas market leader in the fabrication and manufacturing of gas and electric drive compressor packages. With multiple manufacturing facilities and some of the industry’s best engineering and design gas compression specialists, McClung is known for producing some of the most reliable compressor packages on the market.
Learn More ->

ALTEC

ALTEC Gas Lift is a trusted leader in the oil and gas industry, providing comprehensive gas lift equipment and services for over 30 years. Specializing in deepwater, shelf, and land-based wells, ALTEC delivers precise, actionable data and optimized systems to enhance production and mitigate risks.
Learn More ->
Flowco, Inc. Sustainability
Subheader

Section Header

Section paragraph about why the trees are so beautiful
3306NA-JGQ/2 – The Wolf

Cooler: Inducted Draft, Vertical Discharge

01

Right-sized gas cooling sections maintain discharge temperatures, eliminating hydrate formation

02

Final discharge temperature: 250 degrees fahrenheit

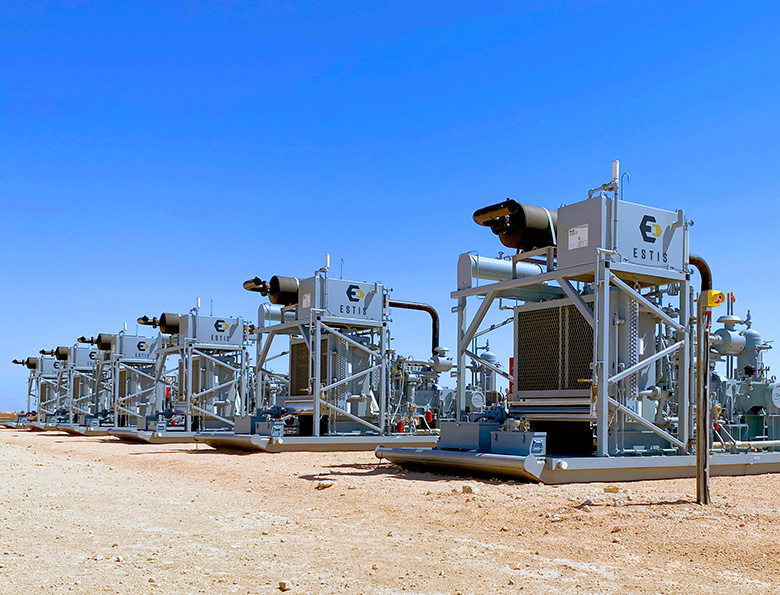

Estis Compressor Fleet
United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

3306NA-JGQ/2 – The Wolf

Compressor Performance

Performance

145 HP @ 1800 RPM

Engine

Caterpillar 3306BNA

Compressor

Ariel JGQ/2 - 2.75" X 1.625"

Estis Compressor 200HP Performance Chart

Maximize early-stage gains with HPGL

Talk to one of our experts today to learn more or request a personalized quote for your operation.
Let's Talk
