What is High-Pressure Gas Lift (HPGL)?

HPGL is an artificial lift method using high-pressure compression to inject line gas down tubing and produce fluids up the annulus, reducing downhole failure points common with ESPs and other lift methods.

Why choose The e-Mammoth™ HPGL?

e-Mammoth™ is designed for high-capacity, electric-drive applications where surface-based lift improves uptime, reduces LOE, and minimizes downhole intervention.

Does e-Mammoth™ require grid power?

e-Mammoth™ is intended for sites with reliable electrical power. Configuration options depend on field requirements.

Where does e-Mammoth™ perform best?

e-Mammoth™ is a strong fit for high-GOR wells, deviated wellbores, and large onshore wells where higher compression capacity and electric-drive reliability matter most.

e-Mammoth

450HP-JGA/4 | e-MAMMOTH ™

Key Highlights

Explore how the 400HP-JGA/4 – e-MAMMOTH™ compressor package might be the right solution for you.

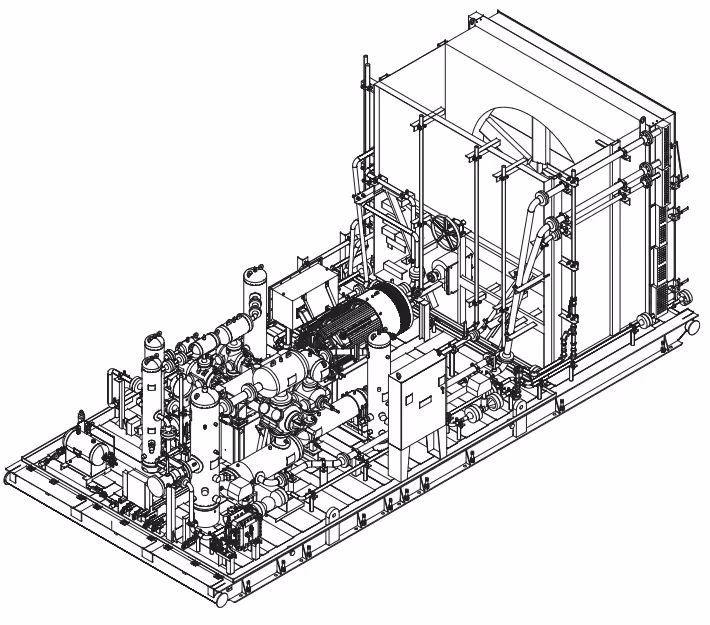

The e-MAMMOTH combines a KTA19 and a Wolf into one electric skid. This single skid serves one well. Because of its single-skid design—versus booster-style HPGL implementations—the e-MAMMOTH eases mobilization and demobilization logistics, reduces installation time and costs, and increases reliability.

High Discharge Pressure

No need for gas lift valves

Five Stage High-Pressure Operation

Leads to increased flow rate at lower pressures

World-Class Component OEMs

For reliability and confidence in the field

Custom VFD/Control Panel

Tells you what is happening in the field – from your office

450HP-JGA/4 | e-MAMMOTH ™

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance

Piping adheres to ASME B31.3

API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation

Custom VFD/Control Panel

Rugged four-runner I-beam skid with environmental containment

Inlet spool piece with basket strainer

Suction-based speed control

Manual cooler louvers

1st
Stage Cylinder

8.875" JG

375 psig

2nd Stage Cylinder

5.125" JG

865 psig

3rd
Stage Cylinder

3.375" JG

1640 psig

4th Stage Cylinder

3" SG-CE

3000 psig

5th
Stage Cylinder

1.625" SG-FS-HE

6100 psig

450HP-JGA/4 | e-MAMMOTH ™

Compressor: Ariel JGA/4

World-class compressor backed by the Ariel service and support network
Available 72-month warranty

Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 2

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 3

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

450HP-JGA/4 | e-MAMMOTH ™

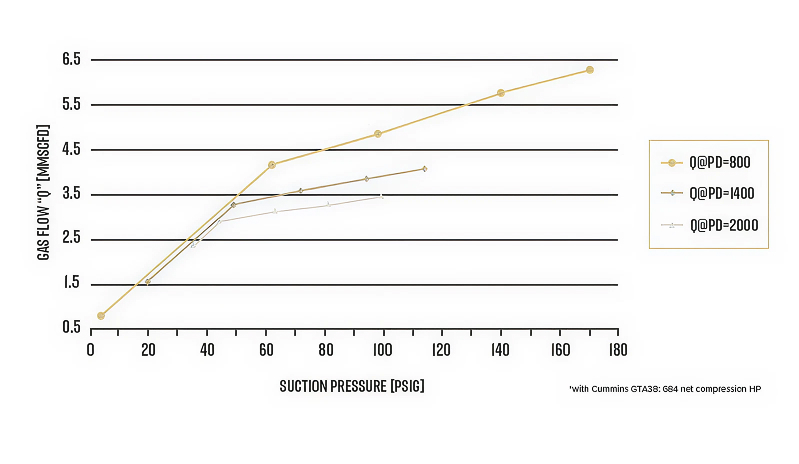

Compressor Performance

Performance

4560 HP @ 1785 RPM

Motor

450HP

Compressor

Ariel JGA/4

450HP-JGA/4 | e-MAMMOTH ™
