What is High-Pressure Gas Lift (HPGL)?

HPGL is an artificial lift method using high-pressure compression to inject line gas down tubing and produce fluids up the annulus, eliminating many downhole failures common with other forms of artificial lift methods.

Why choose The e-Wolf™ HPGL over other forms of artificial lift?

The e-Wolf provides similar or superior production while removing downhole failures, lowering LOE, improving uptime, and reducing NPT.

Does HPGL require access to the electrical grid?

No. The e-WOLF is our electric-drive option, of the Wolf HPGL package that comes in a natural gas engine configuration for sites without reliable power.

Where does HPGL perform best?

HPGL is highly effective in high GOR wells, deviated wellbores, sandy formations, and wells where ESPs are unreliable or cost-prohibitive.

HPGL with eWolf - Flowco Inc.

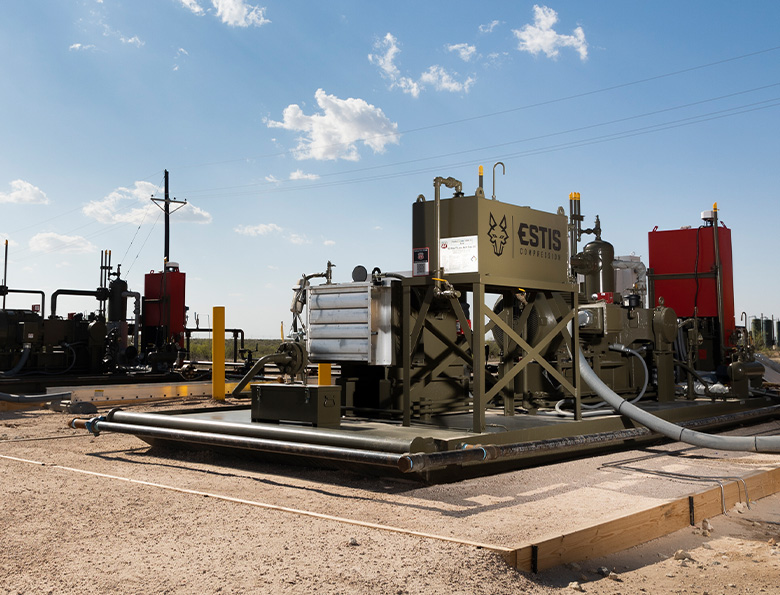

150HP-JGQ/2 | e-WOLF ™

Key Highlights

Explore how the 150HP-JGQ/2 | e-WOLF ™ compressor package might be the right solution for you.

High Discharge Pressure

No need for gas lift valves

Two Stage Operation

Leads to increased flow rate at lower pressures

World-Class Component OEMs

Ensures reliability and confidence in the field

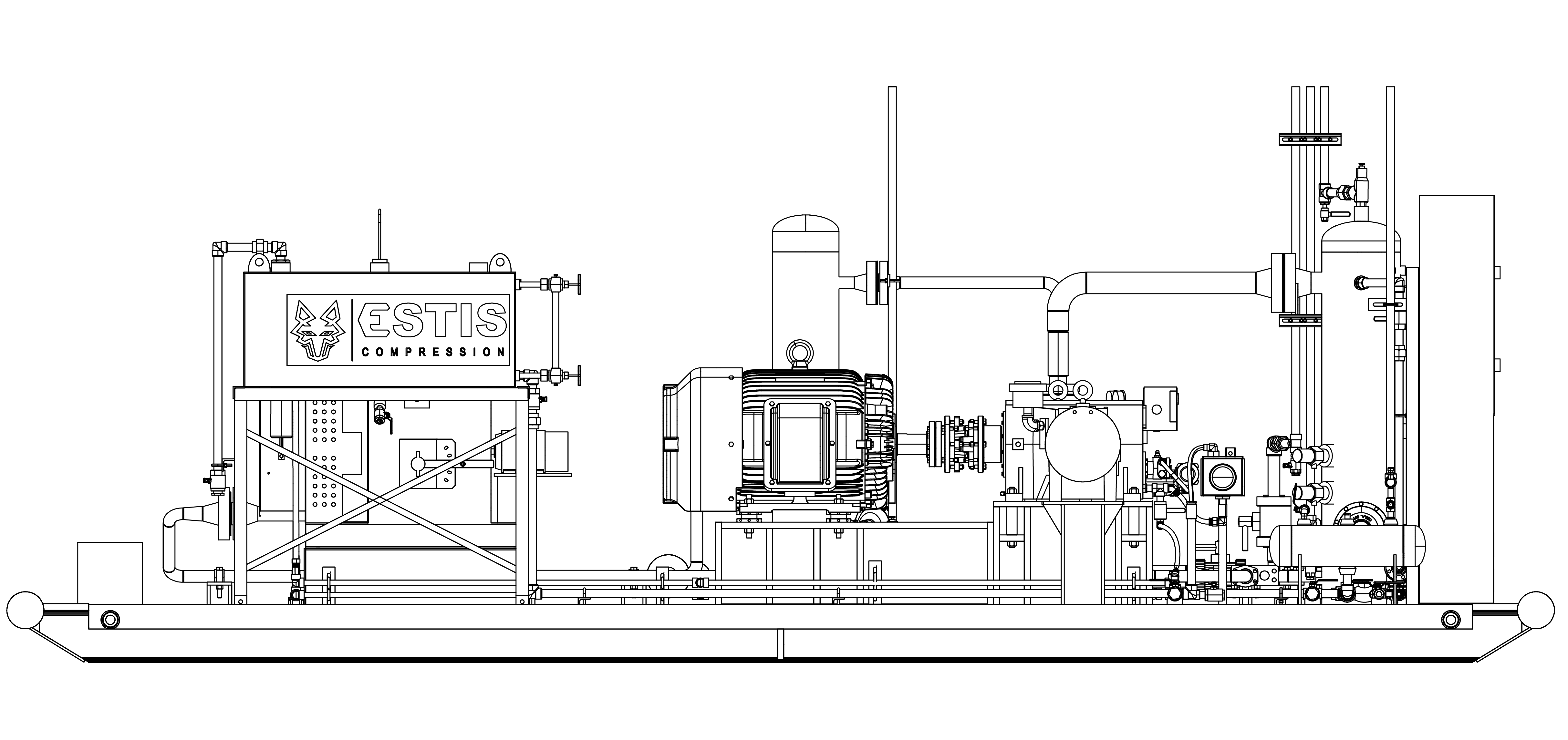

150HP-JGQ/2 | e-WOLF ™

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance

Piping adheres to ASME B31.3

API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation

Murphy Centurion Panel

Rugged four-runner I-beam skid with environmental containment

Inlet spool piece with basket strainer

Automatic cooler louvers

Scrubber heat tracing virtually eliminates frozen dump valves

Insulated scrubbers

Oil day tank included for simpler unit mobilization

Introduction: Product Section 1

Horsepower: 700HP @ 1785 rpm
Dimensions: 34’ L X 13’ W X 11’ H
Weight: 75,000 lbs
Control system: Murphy/TECO

Get started

1st Stage Cylinder

2.75" SG-CE

3000 psig

2nd Stage Cylinder

1.625" SG-FS-HE

6100 psig

150HP-JGQ/2 | e-WOLF ™

Compressor: Ariel JGQ/2

World-class compressor backed by the Ariel service and support network
Available 72-month warranty

Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 2

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 3

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Subheader

Section Header

Section paragraph about why the trees are so beautiful

United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

150HP-JGQ/2 | e-WOLF ™

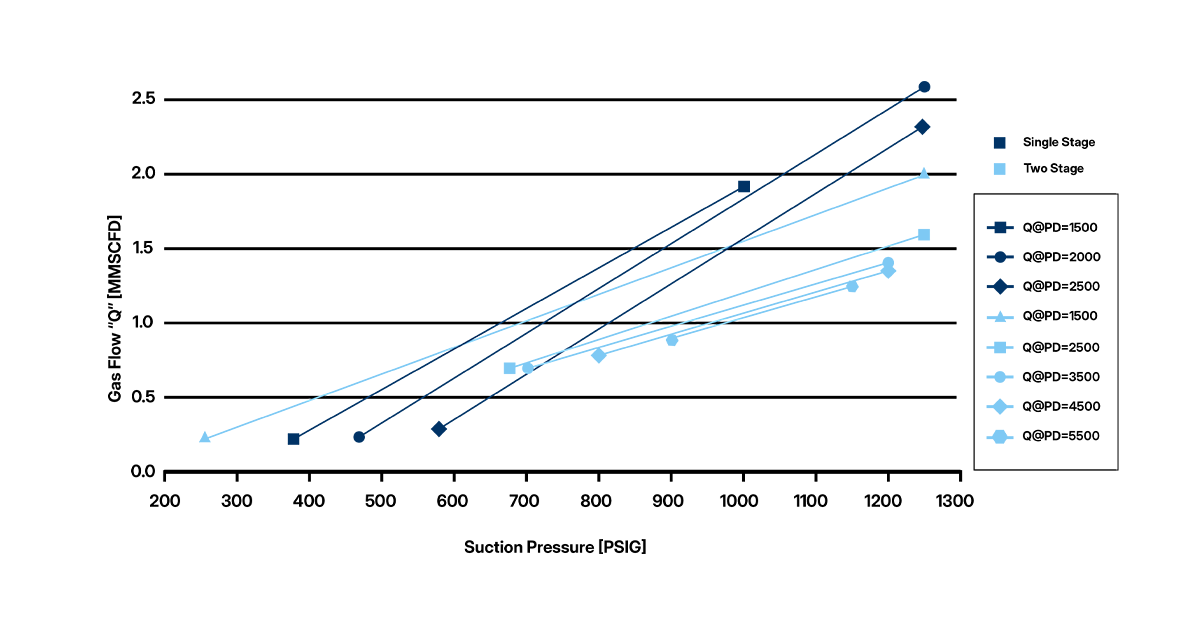

Compressor Performance

Performance

150HP @ 1800 RPM

Motor

GE 150HP

Compressor

Ariel JGQ/2

150HP-JGQ/2 | e-WOLF ™
