What is High-Pressure Gas Lift (HPGL)?

HPGL is an artificial lift method using high-pressure compression to inject line gas down tubing and produce fluids up the annulus, reducing downhole failure points common with ESPs and other lift methods.

Why choose The Grizzly™ HPGL?

Grizzly is designed for higher-demand applications, providing surface-based lift that improves uptime, reduces LOE, and minimizes downhole intervention.

Where does Grizzly perform best?

Grizzly is a strong fit for high-GOR wells, deviated wellbores, and large onshore wells where reliability and run-time matter most.

Does Grizzly require grid power?

Grizzly is commonly configured as an engine-driven package, with configuration options based on site needs and power availability.

High-Pressure Gas Lift | Grizzly

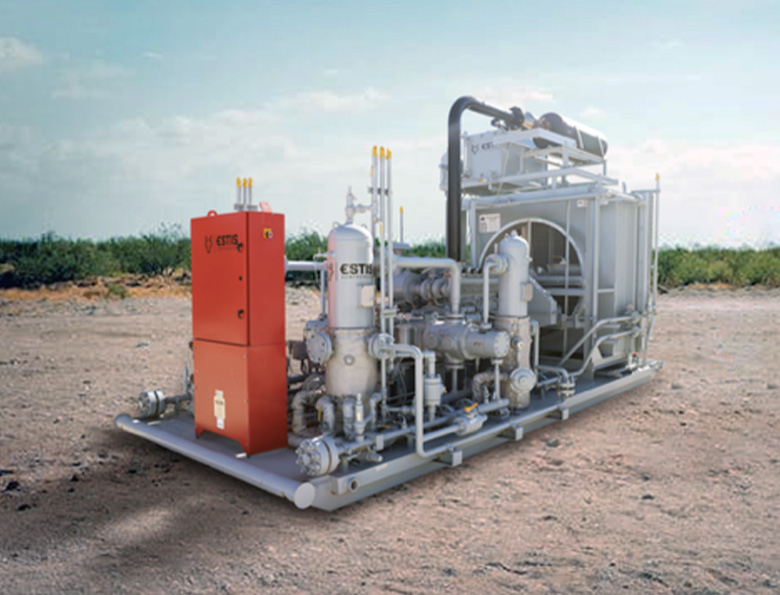

3306TA-JGQ/2 – The Grizzly ™

Key Highlights

Explore how the 3306TA-JGQ/2 – The Grizzly ™ compressor package might be the right solution for you.

Utilizing a unique, patented single driveshaft design, the two compression cylinders share one drive, saving operating costs and enhancing sustainability. With two compressor cylinders on one skid, the Grizzly allows operators to serve multiple wells with a single unit.

High Discharge Pressure

No need for gas lift valves

Four-Stage Operation

Leads to increased flow rate at lower pressures

World-Class Component OEMs

For reliability and confidence in the field

3306TA-JGQ/2 – The Grizzly ™

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance

Piping adheres to ASME B31.3

API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation

Murphy Centurion Panel

Rugged four-runner I-beam skid with environmental containment

Coalescing type fuel gas filter installed for maximum engine protection

Inlet spool piece with basket strainer

Automatic cooler louvers

Scrubber heat tracing virtually eliminates frozen dump valves

Insulated scrubbers

Shell and tube fuel line heater

Oil day tank included for simpler unit mobilization

Introduction: Product Section 1

Horsepower: 700HP @ 1785 rpm
Dimensions: 34’ L X 13’ W X 11’ H
Weight: 75,000 lbs
Control system: Murphy/TECO

Get started

1st Stage Cylinder

2.75" SG-CE

3000 psig

2nd Stage Cylinder

1.625" SG-FS-HE

6100 psig

1st Stage Cylinder

2.75" SG-CE

3000 psig

2nd Stage Cylinder

1.625" SG-FS-HE

3000 psig

3306TA-JGQ/2 – The Grizzly ™

Compressor: Ariel JGQ/2

World-class compressor backed by the Ariel service and support network
Available 72-month warranty

Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 2

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Card 3

Card paragraph text

Item 1
Item 2
Item 3

CTA 1 ->

Subheader

Section Header

Section paragraph about why the trees are so beautiful

3306TA-JGQ/2 – The Grizzly ™

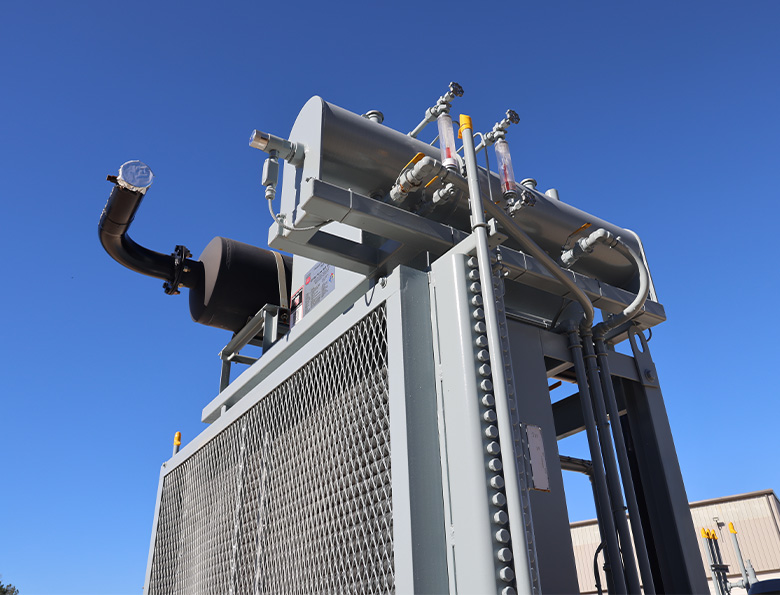

Cooler: Induced Draft

01

Combined compressor lube oil and gas cooling improves service access and eases package maintenance

02

Final discharge temperature: 250°

United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

3306TA-JGQ/2 – The Grizzly ™

Compressor Performance

Performance

203 HP @ 1800 RPM

Engine

Caterpillar 3306BTA

Compressor

Ariel JGQ/2
