Horizontal Pump Systems (HPS)

Built for demanding service, our multistage centrifugal pumps deliver consistent, efficient performance in water disposal, injection, and fluid boosting applications, with a focus on reliability and reduced maintenance.
High-Pressure Gas Lift units in the Permian Basin

Your Fluid Transfer Workhorse

Trusted globally, Aquarius® Horizontal Pumping Solutions provide reliable surface pumping performance and reduced lead times across applications such as saltwater disposal, amine treatment facilities, and jet pumping operations.
Let's Talk

Designs that Turn on a Dime

Built with a modular architecture, our horizontal pumping systems allow for streamlined reconfiguration and expedited changeouts, supporting lower maintenance expenditures and sustained operational uptime.
Learn More About Sizing & Analysis
Customer Testimonial

“During the week of the startup, we had some last-minute hurdles thrown our way, but Valiant was able to adjust to our schedule and get everything taken care of seamlessly. I’m happy to say that our pumps have been running flawlessly for about four weeks now, and I can’t wait to start up the next Valiant pumps.“

Features & Benefits

Wide Production Range:

Engineered for production rates between 150 and 100,000+ barrels per day, with standard configurations rated up to 1,500 HP. Heavy-duty configurations are available upon request.

Low-Vibration Design:

Designed with a cooling-fin housing and low-friction bearings, V-Series thrust chambers effectively manage heat and minimize vibration to deliver consistent, precision operation.

Abrasion-Resistance:

Improved run life and performance in the presence of abrasives and scale/asphaltenes

Versatile Configurations:

Surface pad, mobile unit, compact, refinery setup, offshore platform
Aquarius® Pump Specifications
Applications
Service & Support
Model
Construction
Diameter
Recommended Operating Range (60 Hz/3600 rpm)
VC
Floater or ARM
4.00”
150-7,700 bpd (4.4-225 gpm)
VE
Floater, ARM, or Compression
5.62”
400-14,000 bpd (11.7-408 gpm)
VG
Compression
7.25”
2,200-26,300 bpd (64-767 gpm)
VM
Compression
9.00”
6,200-34,300 bpd (180-1,000 gpm)
VN
Compression
10.00”
11,600-49,200 bpd (338-1,435 gpm)
VP
Compression
12.00”
16,700-73,000 bpd (487-2,129 gpm)
VR
Compression
13.00”
24,730-103,000 bpd (721-3,004 gpm)

Aquarius horizontal pump systems can be engineered to meet the full scope of surface fluid applications:

  • Saltwater disposal/injection
  • CO2 injection/sequestration
  • Jet pumping power fluid
  • Waterflood injection
  • Crude oil transfer
  • Condensate transfer
  • Mining & Municipal Applications
  • Offshore Applications
  • On-site evaluation and consultations
  • Retrofit capabilities for all major manufacturers
  • Routine maintenance and repairs
  • Responsive, on-time installation and start-up
  • Easy-to-remove seal section for faster changeouts, lower costs, and less downtime
Learn More About Valiant Service

Restore, Resize, and Replace

Valiant offers competitive retrofit solutions for existing horizontal pumping equipment from multiple manufacturers.

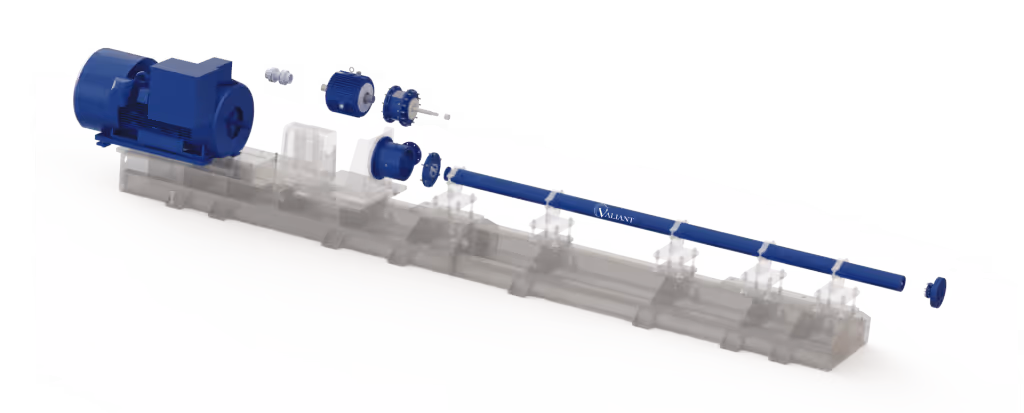

01

INSTRUMENTS

Aquarius HPS systems can incorporate monitoring and control options, including pressure, temperature, vibration, flow meters, and back-pressure controls.

02

SKID

The modular skid design provides the flexibility to configure fit-for-purpose solutions while enabling efficient equipment changeouts.

03

PUMP

Our HPS product line offers the full spectrum coverage via our versatile pump ranges, metallurgy options, and radial wear protection for low-viscosity fluids.

04

MOTOR

Aquarius motors can be customized to meet any desired specs, including TEFC, TEACC, WPII, NEMA, or IEC standards.

05

THRUST CHAMBER

Thrust chambers are available in max loads of 7,000, 14,000, and 30,000 lbs. with maximum shaft horsepower up to 2,500 HP.

06

SEALS

Valiant HPS seals are available in component or cartridge style and can be provided in any API flush.

07

SUCTION

Suctions come in standard offerings of 4” and 6”, Class 150 – 1,500 in Stainless. If you have a specialized or hi-spec application, please contact us to learn more about our enhancement options.

Reduce OPEX and Non-Productive Time in NGL and CO2 Applications

Operate in dry-start conditions and low-viscosity applications with Aquarius horizontal pumping solutions designed with self-lubricating graphite bushing constructions.
View Additional Specs
Dashboard mockup

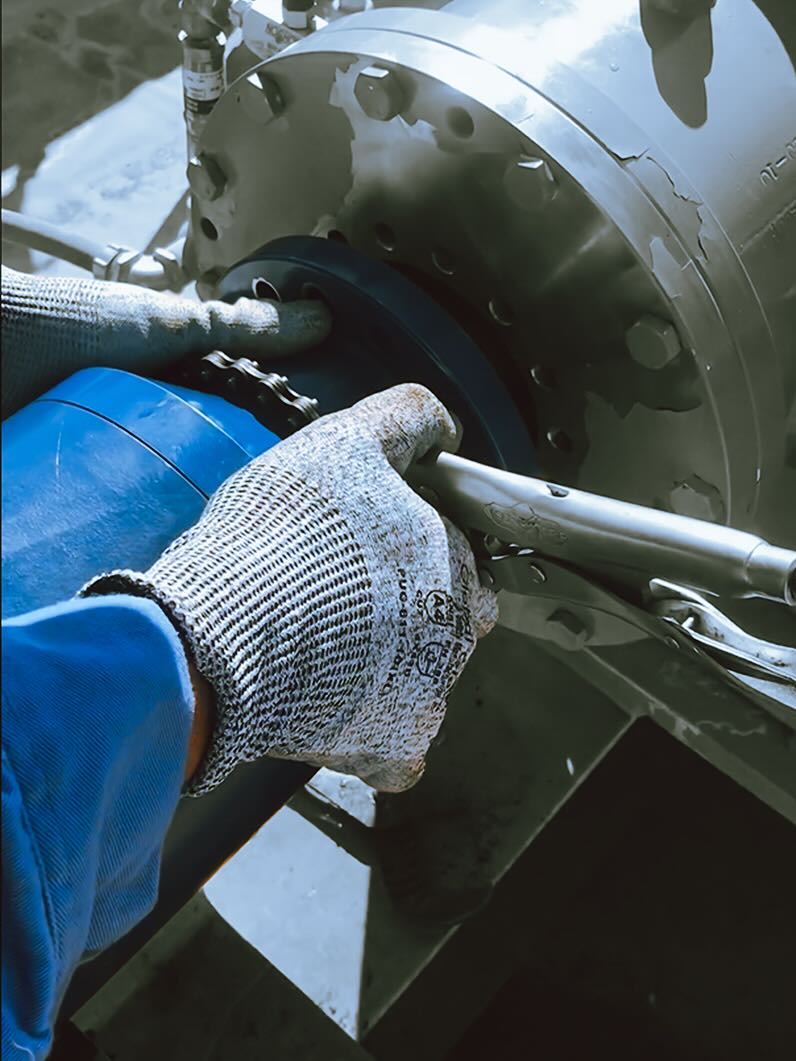

Why Retrofit?

Over the course of operation, horizontal pumping equipment may wear down and components need to be replaced or repaired. Individual components can then be installed and configured “retroactively” onto a pre-existing configuration.

Common applications for retrofits include:
Modernizing or upgrading systems
Underperformance
Heat, noise, or vibration irregularities
Responding to component failure
Our Excellence

Optimized for Speed Without Compromise.

Consider our team an extension of your operation. Our Field Service division provides on-site diagnostics and real-time recommendations, while Engineering and Customer Advocates work in close coordination to accelerate performance improvements and reduce operational setbacks.

We provide legacy-compatible replacements, upgrades, and repair services across multiple system components, including multistage pumps, thrust chambers, seals, motors, and variable speed drive control panels and human-machine interfaces, even for systems originally supplied by other manufacturers.
Dashboard mockup
Every site carries its own operating history and economic considerations. Ensuring retrofitted equipment is properly configured and installed requires hands-on expertise and a thorough understanding of both new and existing field technologies.

Our team supports everything from standard replacements to sophisticated engineering upgrades, offering purpose-built retrofits, ongoing maintenance, and precise performance diagnostics.

Frequently Asked Questions (FAQs):

What is a horizontal pumping system (HPS)?

Icon

An HPS unit is a modular pump system used for surface water injection, pipeline transport, produced water disposal, and other fluid transfer applications.

Why choose a horizontal pump system?

Icon

It’s compact, easy to install, energy-efficient, and requires minimal maintenance.

How is HPS different from vertical pumps?

Icon

HPS units have a horizontal layout, making them easier to service and install in tight spaces and surface applications.

What industries use HPS technology?

Icon

Oil and gas, mining, municipal water, and other industrial applications.

Can HPS handle variable flow rates?

Icon

Yes, HPS units are flexible and can be configured to meet dynamic flow and pressure needs. On the high-end, our Aquarius® HPS units are capable of surpassing 100,000 bpd.
