Unconventional Gas Lift: Below Packer Systems

Flowco’s Below Packer Gas Lift systems deliver lift at the true point of need deep in the wellbore, beyond the limits of conventional gas lift. By lowering bottomhole pressure and reducing fluid fallback, these systems maximize production in unconventional and low-pressure wells.
Explore Solutions
Explore Downhole Equipment

What is Below Packer Gas Lift?

Below Packer Gas Lift (BPGL) extends gas injection past the conventional lift point, delivering gas into deeper sections of the wellbore such as the curve, toe, or long perforated intervals. By reducing hydrostatic pressure where it matters most, BPGL unlocks production that standard gas lift systems cannot access.
Enables deeper injection for lower flowing bottom-hole pressure
Maximizes production in horizontals and toe-up laterals
Protects upper gas lift valves from fluid and debris exposure
Allows easy chemical treatment of tubing and casing
Provides efficient solutions for both horizontal and vertical wells
Schedule a Meeting to Optimize Your Well ->

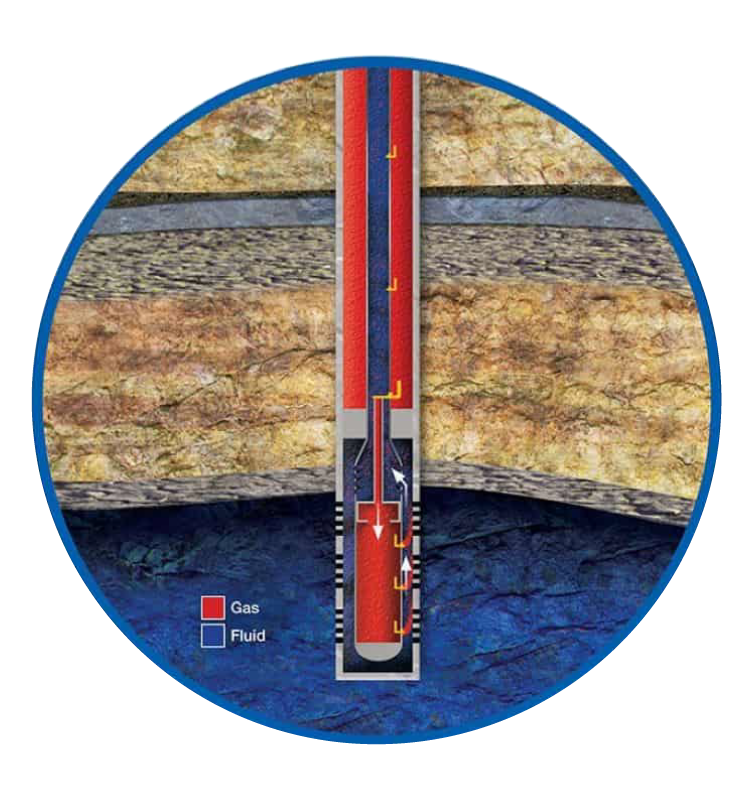

below packer gas lift

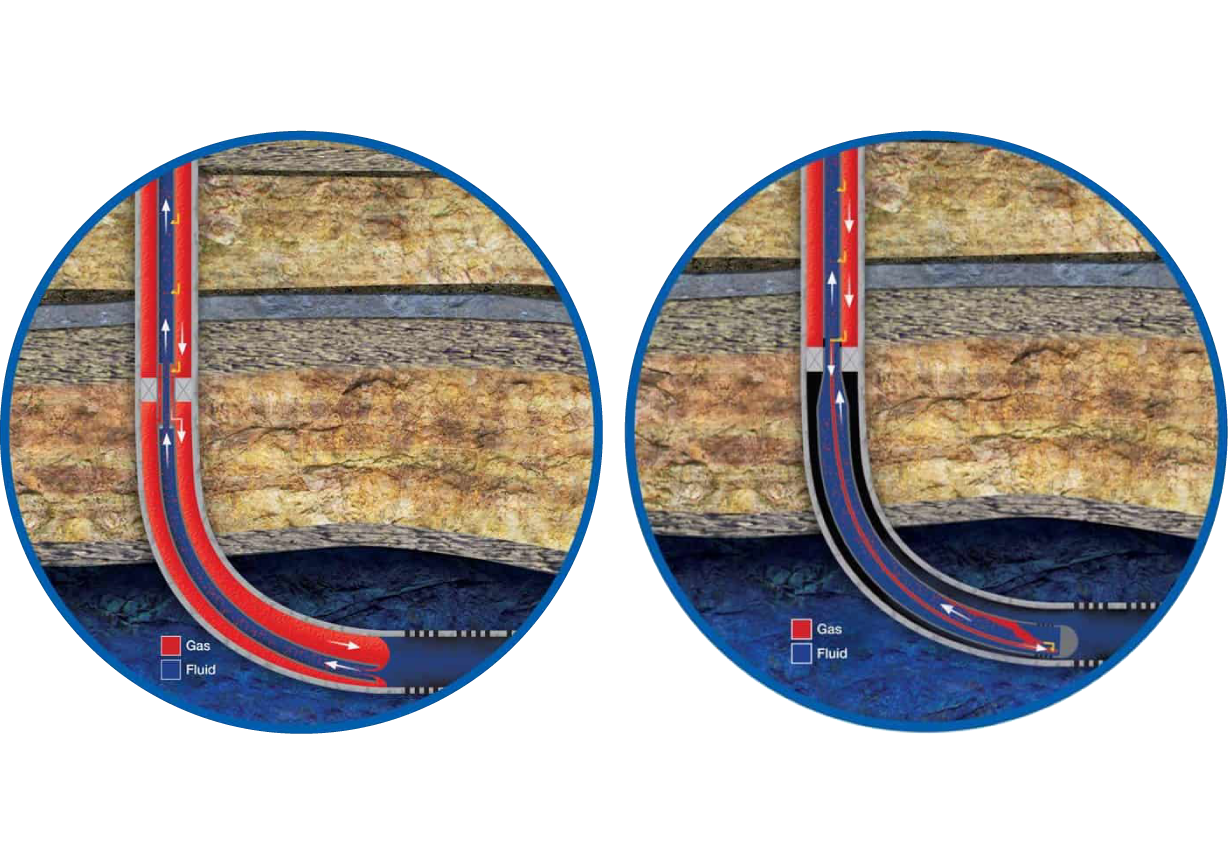

unconventional gas lift - below packer
How It Works

Understanding Below Packer Gas Lift

Conventional gas lift injects above the packer, which is effective but often not deep enough for many unconventional wells. Flowco’s Below Packer systems extend injection further downhole, reducing hydrostatic pressure and minimizing fluid fallback. The result is more consistent unloading, lower injection volumes, and improved well performance.

The Flowco Advantage: Why Choose Our Below Packer Gas Lift?

Proven Designs for the Toughest Well Conditions

Deeper Injection Control

Reaches the true lift point below the packer.

Equipment Protection

Shields gas lift valves from fluid and debris.

Optimized Performance

Maximizes lift in unconventional and low-pressure wells.

Better Treatment Access

Enables chemical treatment of tubing and casing.

Engineered Versatility

Available in multiple system designs for different well profiles.

Types of Below Packer Gas Lift Systems

Packer Bypass System (PBS)
Micro-Annulus Crossover System
Increased Annular Velocity (IAV) System
Combines a conventional gas lift setup with a bypass assembly that routes gas through the packer. This allows lift at the end of the tail pipe in the curve where gradient is lowest.
  • Delivers lift at the lowest flowing pressure point
  • Provides chemical treatment access during unloading
  • Prevents re-entry of fluids during shut-in
Download Spec Sheet ->
Uses a crossover adapter and internal injection string to achieve deeper injection, either in toe-up horizontals or vertical wells with low reservoir pressure.
  • Lowers flowing bottom-hole pressure more effectively than conventional lift
  • Isolates injection pressure from perforations
  • Improves gas utilization and fluid density reduction
Download Spec Sheet ->
Employs optimized tubing and injection string sizes to maintain critical unloading velocity. Available in horizontal and vertical configurations for wells requiring pressure isolation.
  • Maintains velocity to prevent liquid loading
  • Reduces hydrostatic pressure on the formation
  • Simple installation without wellhead modification
Download Spec Sheet ->
Dashboard mockup
Compliance and Certification

Providing Data to Meet Compliance and Certification

Flowco's vapor recovery solutions are fully compliant with all relevant regulations, including EPA standards. Our systems have undergone rigorous testing and certification processes to ensure they meet the highest industry standards for safety and performance.
Learn More About EPA Compliance ->
Related Products and Solutions

Explore Related Flowco Solutions

In addition to vapor recovery, Flowco offers a range of complementary products designed to optimize your operations and reduce emissions.
Natural Gas Compressors
Emission Control Systems
Automation and Monitoring Solutions
Explore All Natural Gas Technologies ->
Dashboard mockup

Deeper Lift Performance for Increased Production

Flowco’s Below Packer Gas Lift solutions are engineered to reduce hydrostatic pressure, improve lift efficiency, and maximize production in unconventional wells. Let’s design the right solution for your reservoir.
