FPS by Flowco

Gas Lift Valves

Flowco gas lift valves are engineered to inject consistently through every cycle, helping mature wells continue to perform as if they were just getting started.

What is a Gas Lift Valve?

Gas lift valves are precision instruments at the core of artificial lift systems, enabling consistent injection of lift gas to optimize production. Installed at strategic depths within the tubing string, these valves open and close in response to pressure changes, reducing hydrostatic head and lifting fluids to surface with maximum efficiency.
Maximum uptime: Reliable performance in harsh environments
Precision-engineered: Accurate opening/closing for optimized lift
Minimal intervention: Wireline retrievable designs save time and trips
Thermally stable: Inconel bellows PPO valves resist temperature effects
Flexible compatibility: Tailored solutions for single or dual completions
Let's Talk ->

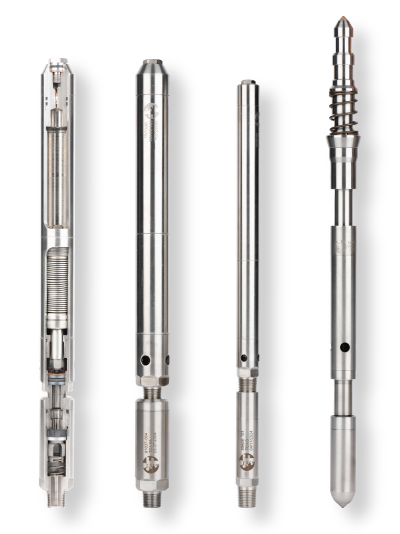

gas lift valves

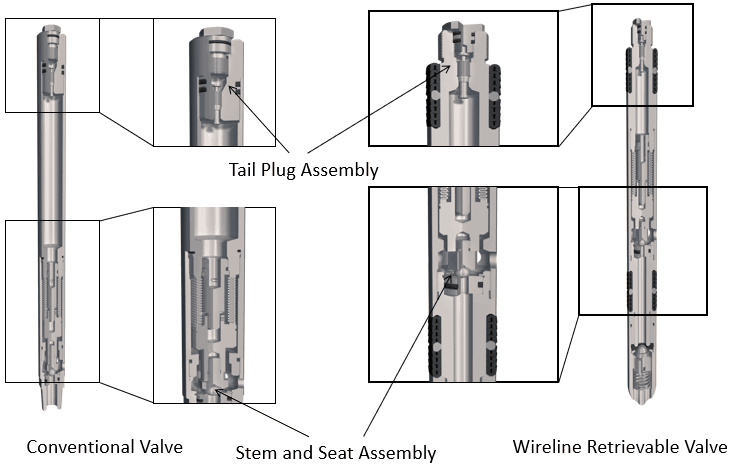

gas lift valve parts diagram
How It Works

Understanding Gas Lift Valves

As injection gas enters the casing annulus, the gas lift valve responds to increasing pressure. Once the activation threshold is reached, the valve opens and allows gas to enter the tubing, lightening the fluid column. Flowco valves are engineered for precise response, enabling your well to lift more with less.

HPGL VS ESP - YEAR ONE COST COMPARISON

Is HPGL right for your organization? Walk through the Estis HPGL Evaluator, and explore the economic analysis of ESPs and high-pressure gas lift and see for yourself how HPGL can make your unique application more profitable.
Learn more

The Flowco Advantage: Why Choose Our Gas Lift Valves?

Because every lift should be a smart lift.

Built for Tough Wells

Crafted with premium materials like Inconel springs and precision-machined components.

Wireline Swappable

Wireline retrievable options reduce downtime and eliminate costly tubing pulls.

Engineered Accuracy

IPO and PPO valves calibrated for precise response at designed depths.

Surface-Controlled Performance

Optimized for dynamic gas injection programs that evolve with your well.

Types of Gas Lift Valves

Injection Pressure Operated (IPO) Valve
Production Pressure Operated (PPO) Valve
Wireline Retrievable Valve
Nitrogen-charged dome valves that activate when casing pressure exceeds dome pressure, ideal for single completions and conventional gas lift systems.
  • Dome-charged with nitrogen
  • Bellows-operated for sensetive actuation
  • Time-tested for high-rate wells
Download Spec Sheet ->
Valves driven by a corrosion-resistant Inconel spring rather than dome charge. Ideal for high-temperature wells and dual completion scenarios.
  • Spring-loaded (no dome)
  • Immune to thermal changes
  • Reliable in dual string installations
Download Spec Sheet ->
Wireline Retrievable Valves are installed via wireline in side-pocket mandrels for quick swap-outs without tubing trips.
  • Simplified maintenance
  • Realtime replacements
  • Efficient for remote or high-cost intervention sites
Download Spec Sheet ->

“By implementing Flowco’s Conventional Plunger Lift, an operator in the Eagle Ford increased well uptime by 18% and reduced liquid loading events by 30% - all while lowering operational costs.”

Major Oil & Gas Operator, Production Engineer - Permian Basin Operations
Case Study & Field Results

We’ve been using Untitled to kick start every new project and can’t imagine working without it.

Candice Wu
Product Manager, Sisyphus
Dashboard mockup
Compliance and Certification

Providing Data to Meet Compliance and Certification

Flowco's vapor recovery solutions are fully compliant with all relevant regulations, including EPA standards. Our systems have undergone rigorous testing and certification processes to ensure they meet the highest industry standards for safety and performance.
Learn More About EPA Compliance ->
Related Products and Solutions

Explore Related Flowco Solutions

In addition to vapor recovery, Flowco offers a range of complementary products designed to optimize your operations and reduce emissions.
Natural Gas Compressors
Emission Control Systems
Automation and Monitoring Solutions
Explore All Natural Gas Technologies ->
Dashboard mockup

Let’s Talk Lift Strategy.

Your wells deserve valves built for consistent, long-term performance. Our team is ready to help you lift smarter and more efficiently.
Let's Talk
