Valiant by Flowco

ESP Gas Management

Maximize ESP performance in high gas environments with advanced gas handling technology engineered to reduce gas lock, improve production stability, and extend system life.
Explore other ESP Solutions

Solutions to Separate and Control Gas in ESPs

Protection in high gas ratio wells ensures stable, reliable ESP operation. Our specialized pumps and  INTERCEPT™ portfolio of gas solutions combines proven gas handling technologies with applications expertise.
Reduce cycling
Extend ESP motor run life
Produce more efficient barrels
Dashboard mockup

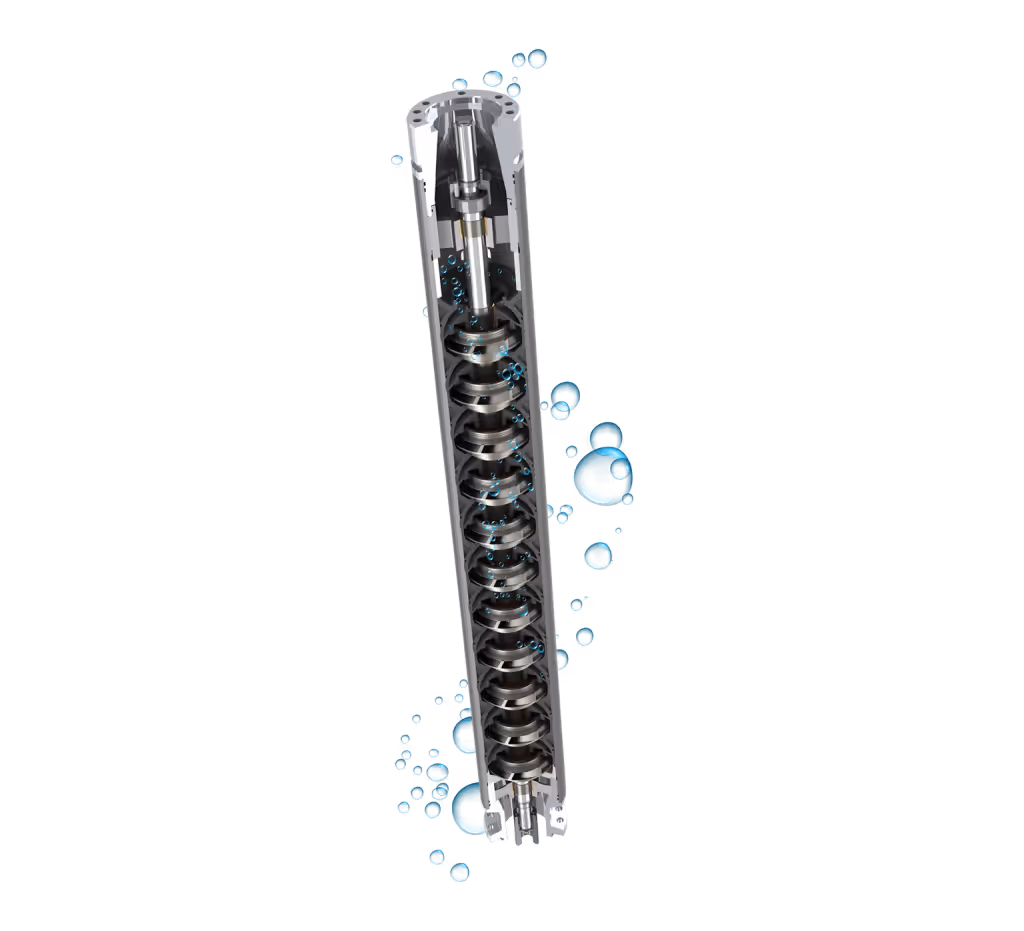

VC900 Pump

Featuring wider impeller vane openings to transport gas through the production string, the VC900 was developed in response to the growing trend of steeper decline rates and low-flow, gassy conditions in maturing U.S. shale fields.
Learn More About the VC900

Vortex and Rotary Gas Separators

When installed at the pump intake, gas separators use centrifugal force to isolate and remove large bubbles from the fluid mixture. Our INTERCEPT™ gas separators are available in Rotary or Vortex designs in a variety of configurations for your specific conditions.
¹ Range based on production of water with no gas content, Production will vary based on fluid viscosity and gas content
‍
² Based on water production under nominal testing conditions
Series
Model
Max Production Rate¹
Production Eff.
in 25% GVF²
338
Rotary
2,700 bpd
1,850 bpd / 89.2%
400
Rotary
2,000 bpd
1,400 bpd / 89.4%
400
Vortex
4,800 bpd
2,500 bpd / 86%
513
Vortex
9,000 bpd
5,000 bpd / 86.4%

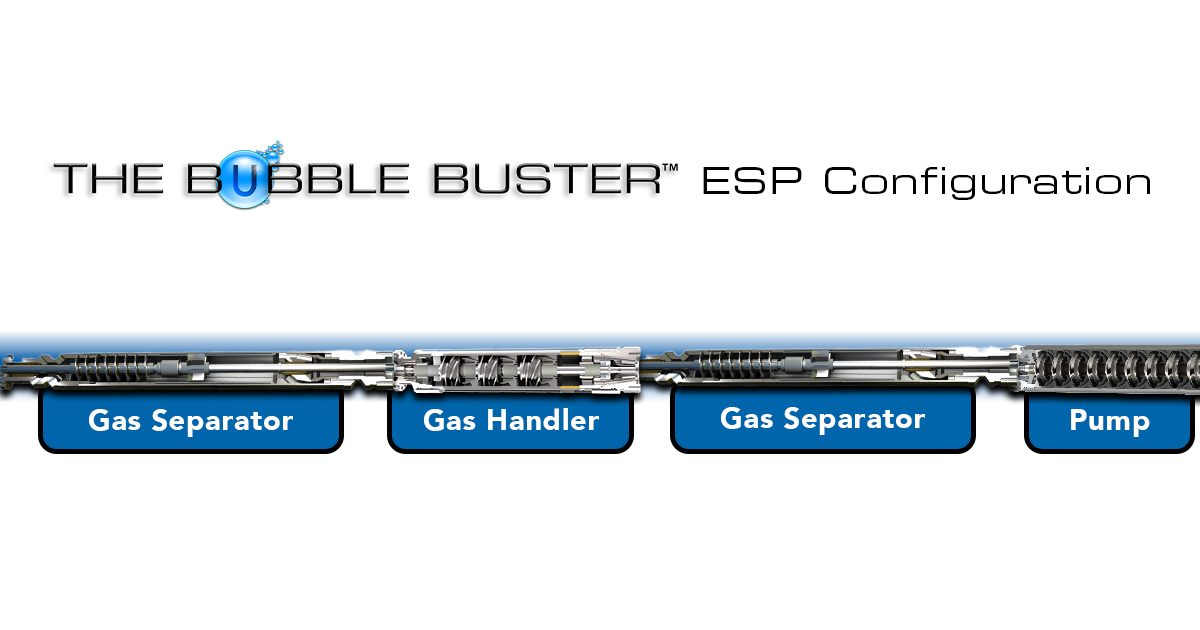

Gas Handlers

Installed above the separator, the gas handler is designed to break up residual gas bubbles and condition the fluid mixture to enhance natural lift efficiency. Each model is manufactured with a fixed stage count and is compatible with configurations that include or exclude a gas separator.
Series
Model
Operating Range
400
VCGH 1550
380 – 1,550 bpd
400
VCGH 2300
750 – 2,300 bpd
538
VEGH 4500
2,250 – 4,500 bpd
538
VEGH 9500
4,500 – 9,500 bpd
Dashboard mockup

Proprietary PULSE® VSD Anti-Gas-Locking Software

To help control gas passing through our pumps, our PULSE® Variable Speed Drives are programmed with proprietary gas lock prevention software. Reaction Delay and Gas Lock Prevention timers can automatically reduce the frequency of the motor to allow gas slugs to move through the production string.
Designed to monitor key ESP Inputs:
Potential gas loads
Motor amperage
Temperature
Intake and Discharge Pressure
Dashboard mockup

Don’t Let Gas Get In The Way

Learn more about our INTERCEPT­­­™ technologies and how you can improve ESP run life by selecting the right gas solution for your application.
Download our Guide
Dashboard mockup

Want to learn more?

Talk to one of our experts today to learn more or request a personalized quote for your operation.
Talk to an Expert
