KTA19-JGA/4

Engineered for speed, power, and efficiency — delivering tested, ready-to-run equipment to get you online faster.
Gas Units
Electric Units

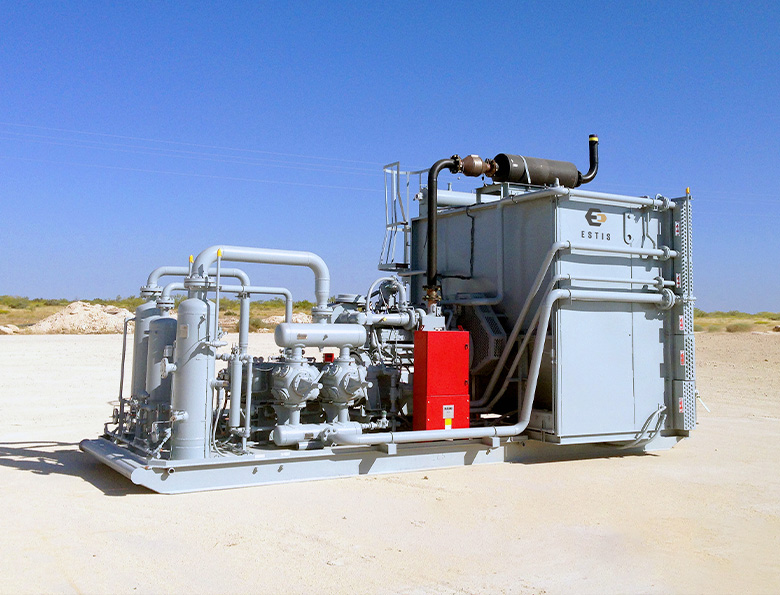

Dashboard mockup
KTA19-JGA/4

Key Specs

Horsepower: 420 HP @ 1800 RPM
Dimensions: 34’ L X 13’ W X 11’ H
Control system:Murphy EICS
Let's Talk->
KTA19-JGA/4

Key Highlights

Explore how the KTA19-JGA/4compressor package might be the right solution for you.

Selection Optimized

Optimized cylinder selection maximizes operational flexibility and utilization of engine power.

Pre-Engineered

Pre-engineered design for expedited delivery and accelerated time-to-market.

Quick Operation

Factory load tested equipment and minimal assembly helps bring your operation online quickly.

KTA19-JGA/4

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance
Piping designed and tested to ASME B31.3
API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
Murphy Centurion Panel
Rugged four-runner I-beam skid with environmental containment
Coalescing type fuel gas filter installed for maximum engine protection
Hot gas bypass on after-cooler section
Inlet spool piece with basket strainer
Suction-based speed control
Automatic cooler louvers
Heat tracing
Insulated scrubbers
Automatic makeup/recycle valve
KTA19-JGA/4

Package Options

Mounted oil day-tank
KTA19-JGA/4

Engine: KTA19GCE

420 HP @ 1800 RPM
0.5 NOx, 2.0g CO standard emissions setting
Totally Enclosed, Fan Cooled (TEFC)
Dependable platform backed by Cummins global dealer network
Engine Integrated Control System (EICS®)
Onboard alternator for reliable reliable 24V power
Electric starter (24V) for reliable starting independent of gas supply
Operator interface included for setup and service without a laptop
Pressure-based automatic speed control

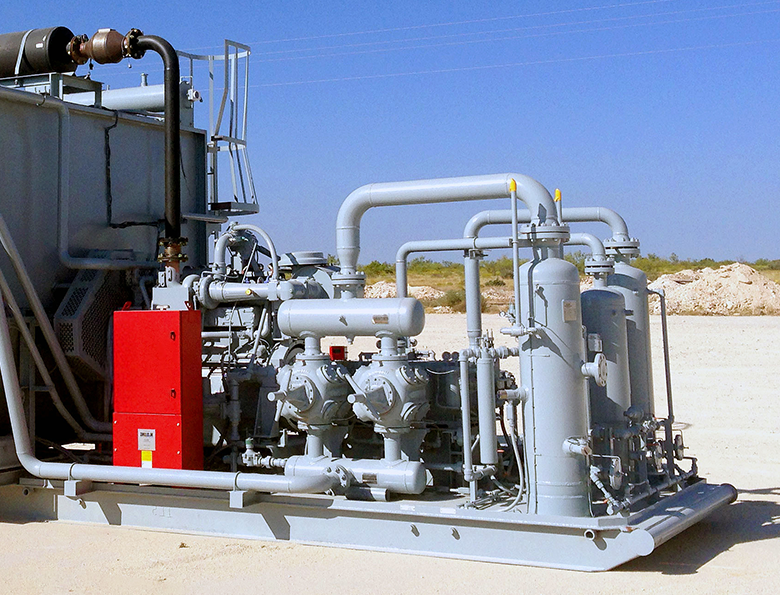

Dashboard mockup

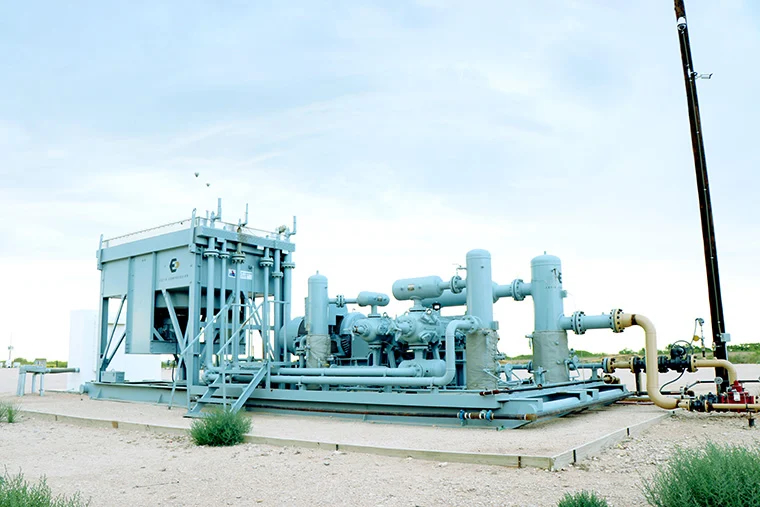

Estis Compressor 700HP

Introduction: Product Section 1

Horsepower: 700HP @ 1785 rpm
Dimensions: 34’ L X 13’ W X 11’ H
Weight: 75,000 lbs
Control system: Murphy/TECO
Get started
Cylinder
Size
Pressure
1st Stage Cylinder
(2) 9.75" RJ
635 psig
2nd Stage Cylinder
6.375" RJ
1270 psig
3rd Stage Cylinder
3.875" RJ
3.625 psig
KTA19-JGA/4

Compressor: Ariel JGA/4

  • World-class compressor backed by the Ariel service and support network
  • VVCPs included on 1st, 2nd, and 3rd stages for maximum operational flexibility
  • Available 72-month warranty
Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 2

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 3

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

McClung

McClung Energy Services is the upstream oil and gas market leader in the fabrication and manufacturing of gas and electric drive compressor packages. With multiple manufacturing facilities and some of the industry’s best engineering and design gas compression specialists, McClung is known for producing some of the most reliable compressor packages on the market.
Learn More ->

ALTEC

ALTEC Gas Lift is a trusted leader in the oil and gas industry, providing comprehensive gas lift equipment and services for over 30 years. Specializing in deepwater, shelf, and land-based wells, ALTEC delivers precise, actionable data and optimized systems to enhance production and mitigate risks.
Learn More ->
Flowco, Inc. Sustainability
Subheader

Section Header

Section paragraph about why the trees are so beautiful
KTA19-JGA/4

Cooler: Induced Draft, Vertical Discharge

01

Combined compressor lube oil and gas cooling improves service access and eases package maintenance

02

15°F approach to ambient on aftercooler

03

Vertical section design simplifies cooler maintenance

04

Vertical air discharge minimizes noise and hot air recirculation

05

84BZF model with forced draft, horizontal air flow design

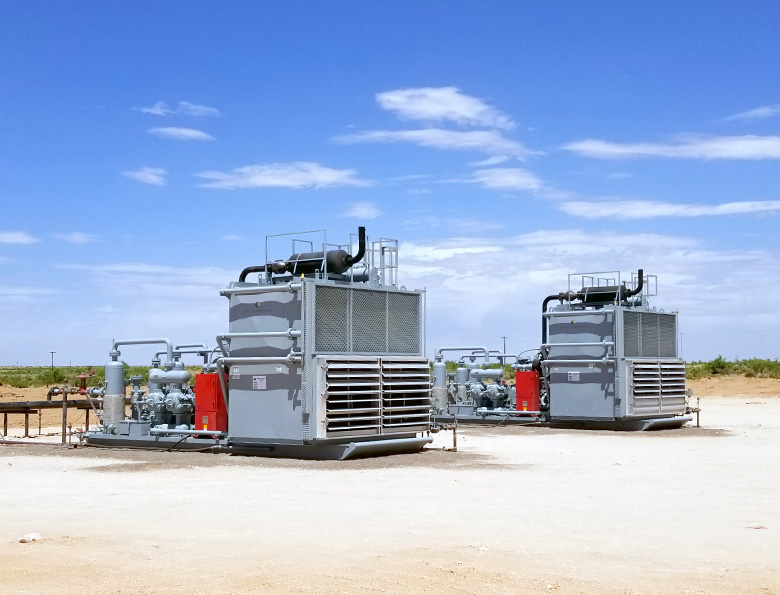

Estis compressor package
United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

KTA19-JGA/4

Compressor Performance

Performance

420 HP @ 1800 RPM

Engine

Cummins: KTA19GCE

Compressor

Ariel JGA/4

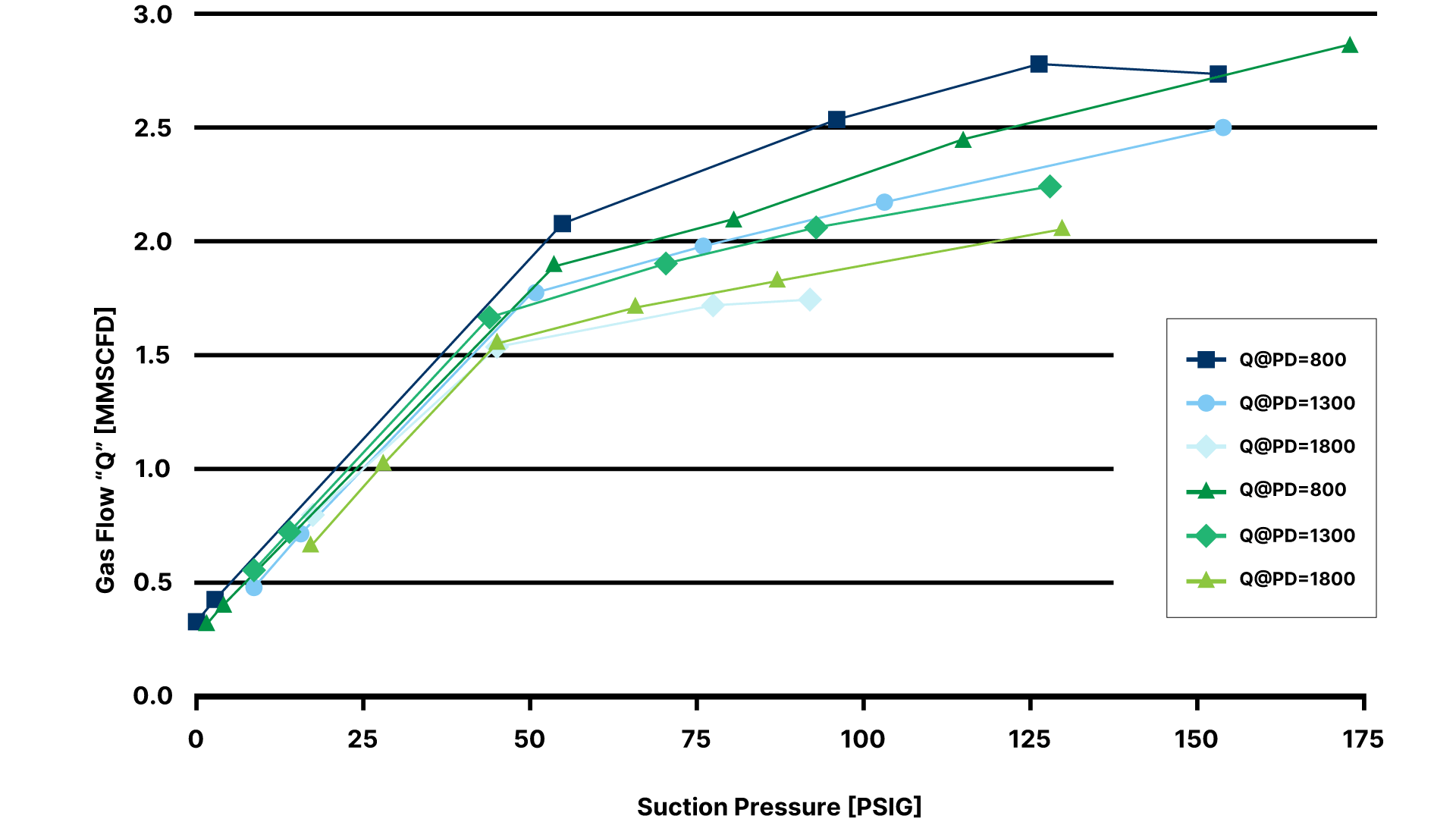

Compressor performance chart - KTA19-JGA/4
