Estis by Flowco

3306NA-JGQ/2

Engineered for speed, power, and efficiency — delivering tested, ready-to-run equipment to get you online faster.
Gas Units
Electric Units
Dashboard mockup
3306NA-JGQ/2

Key Specs

Horsepower: 145 HP @ 1800 RPM
Dimensions: 20’L x 9’ W x 11' H
Weight: 36,000 lbs
Control system: Murphy EICS
Let's Talk->
3306NA-JGQ/2

Key Highlights

Explore how the 3306NA-JGQ/2 compressor package might be the right solution for you.

Selection Optimized

Optimized cylinder selection maximizes operational flexibility and utilization of engine power.

Pre-Engineered

Pre-engineered design for expedited delivery and accelerated time-to-market.

Quick Operation

Factory load tested equipment and minimal assembly helps bring your operation online quickly.

3306NA-JGQ/2

Package Features

Scrubbers ASME coded with 1/16" corrosion allowance
Piping designed and tested to ASME B31.3
API 5th Edition DA2 pulsation and vibration analysis performed for smooth operation
Murphy Centurion Panel
Rugged four-runner I-beam skid with environmental containment
Coalescing type fuel gas filter installed for maximum engine protection
Inlet spool piece with basket strainer
Suction-based speed control
Automatic cooler louvers
Heat tracing
Insulated scrubbers
Automatic makeup/recycle valve
3306NA-JGQ/2

Package Options

0.5G NOx emissions setting
Mounted oil day-tank
3306NA-JGQ/2

Engine: Caterpillar 3306BNA

Dependable industry standard G3300 platforms backed by Caterpillar's global dealer network
Engine Integrated Control System (EICS®)
145 HP @ 1800 RPM
1.0 NOx, 2.0g CO standard emissions setting
Onboard alternator for reliable  24V power
Electric starter (24V) for reliable starting independent of gas supply
Operator interface included for setup and service without a laptop
Pressure-based automatic speed control
Dashboard mockup
Estis Compressor 700HP

Introduction: Product Section 1

Horsepower: 700HP @ 1785 rpm
Dimensions: 34’ L X 13’ W X 11’ H
Weight: 75,000 lbs
Control system: Murphy/TECO
Get started
Cylinder
Size
Pressure
1st Stage Cylinder
7.125" JG
600 psig
2nd Stage Cylinder
4.75" P10-HE
1200 psig
3rd Stage Cylinder
3" P11-HE
1800 psig
3306NA-JGQ/2

Compressor: Ariel JGQ/2

  • World-class compressor backed by the Ariel service and support network
  • Available 72-month warranty
  • VVCPs included on 1st and 2nd stages for maximum operational flexibility
Subheader

Production Section

Product Section description paragraph

Card 1

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 2

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

Card 3

Card paragraph text
  • Item 1
  • Item 2
  • Item 3
CTA 1 ->

McClung

McClung Energy Services is the upstream oil and gas market leader in the fabrication and manufacturing of gas and electric drive compressor packages. With multiple manufacturing facilities and some of the industry’s best engineering and design gas compression specialists, McClung is known for producing some of the most reliable compressor packages on the market.
Learn More ->

ALTEC

ALTEC Gas Lift is a trusted leader in the oil and gas industry, providing comprehensive gas lift equipment and services for over 30 years. Specializing in deepwater, shelf, and land-based wells, ALTEC delivers precise, actionable data and optimized systems to enhance production and mitigate risks.
Learn More ->
Flowco, Inc. Sustainability
Subheader

Section Header

Section paragraph about why the trees are so beautiful
3306NA-JGQ/2

Cooler: Induced Draft, Vertical Discharge

01

Combined engine, compressor and gas cooling improves service access.

02

15°F approach to ambient on aftercooler

03

Vertical section design simplifies cooler maintenance

04

Vertical air discharge minimizes noise and hot air recirculation
Estis Compressor
United States

Estis Patents

Grizzly Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Variable Stage Compressor

11,333,146; 11,193,483, 11,686,302; 11,802,556

Fuel Gas Conditioning System

11,738,303

ZTECH4 | Vault (formerly - Methane Retention System)

Patent Pending

ZTECH4 | Sentry (formerly - ceVac System)

11,976,616, 12,129,816

Vapor Recovery Turbo Compressor

12,123,288

3306NA-JGQ/2

Compressor Performance

Performance

145 HP @ 1800 RPM

Engine

Caterpillar: 3306BNA

Compressor

Ariel JGQ/2

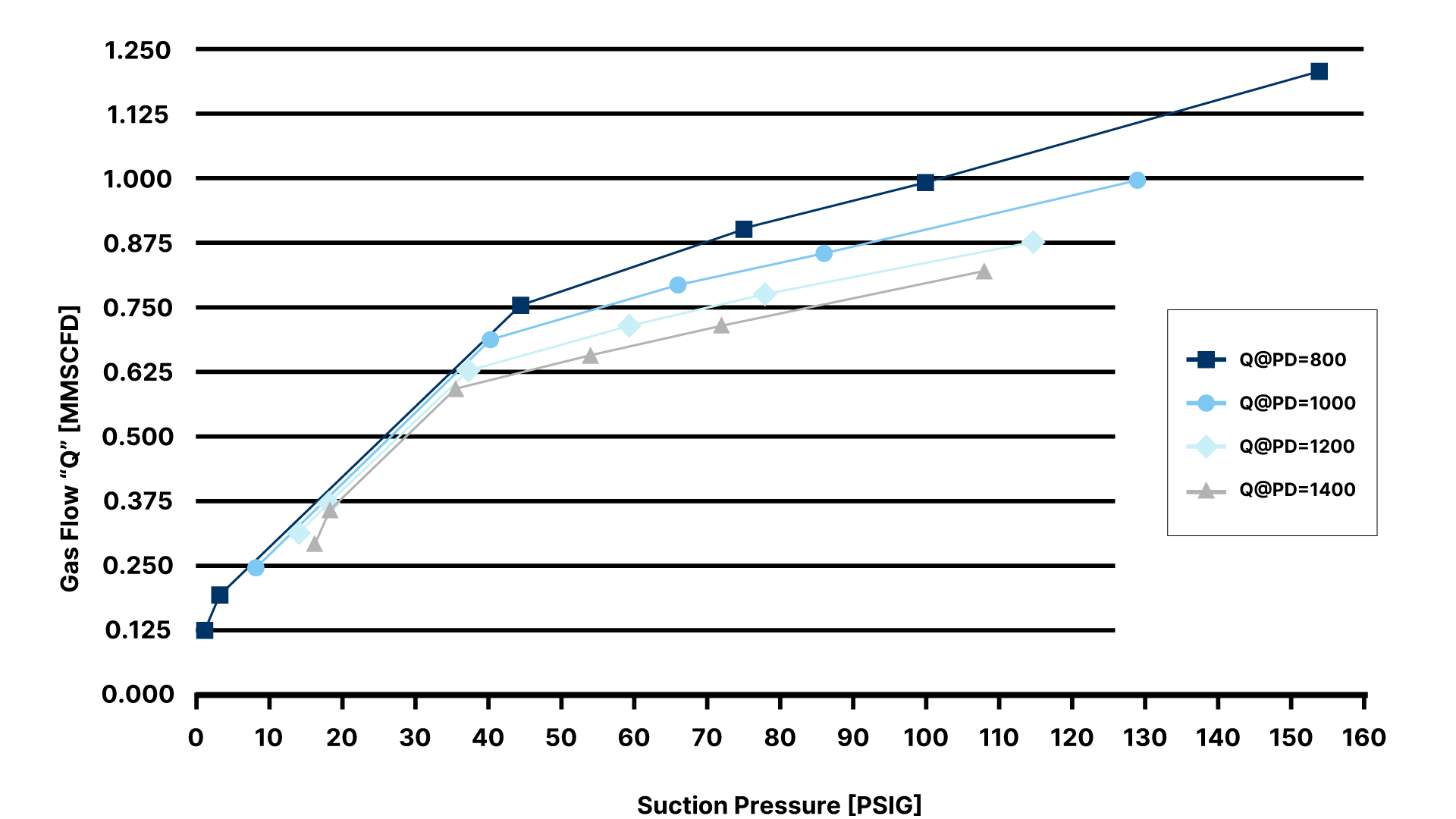

Compressor Performance Chart - 3306NA

Lease or Ownership?

Whether leased or purchased, our compressor packages are designed to support every well and operating scenario.
Discuss Lease Options
See Ownership Solutions
