Flogistix by Flowco

Aerial Methane Leak Detection

Discover the precision of Flogistix AirMethane, our advanced aerial methane leak detection solution. Designed for safety, accuracy, and operational efficiency, AirMethane sets the standard for effective methane monitoring.
Request a Quote

UAV Leak Detection: AirMethane

Navigating recent regulatory changes can be challenging for operators. Flogistix's AirMethane program is expertly designed to support the identification of fugitive emissions at well sites, compressor stations, or tank batteries.

Our fleet of drones is certified in several states, enabling our team to employ sniffer, laser, and OGI cameras. This capability ensures that our customers can meet stringent inspection requirements and comply with EPA OOOO regulations efficiently.

State Certifications

New Mexico

Advanced Leak and Repair Monitoring (ALARM): OGI, Laser, Sniffer.

Colorado

Approved Instrument Monitoring Method (AIMM): OGI.

Pennsylvania

Approved Instrument Monitoring Method (AIMM): OGI.
UAV Leak Detection

Detect Methane Smarter with AirMethane

Flogistix by Flowco's AirMethane solutions use advanced aerial technology to quickly pinpoint methane leaks with accuracy and efficiency. After each inspection, you’ll receive a detailed, site-specific report outlining leak locations and emission rates, helping ensure compliance with both local and EPA regulations — all while improving operational transparency and environmental stewardship.

Navigating EPA's Methane Rule

Listen to our podcast episode ->

OOOOb – New & Modified Sources

  • Applies to new, modified, and reconstructed facilities
  • Requires advanced methane detection and elimination of routine flaring
  • Stricter monitoring and reporting mandates

OOOOc – Existing Facilities

  • Targets existing sources of methane and VOC emissions
  • Requires states to submit and enforce compliance plans
  • Adopts federal guidelines if no state plan is in place

Appendix K – Optical Gas Imaging (OGI) Standards

  • Equipment standards for OGI cameras
  • Training requirements for operators
  • Best practices for accurate methane detection

LDAR – Leak Detection & Repair

  • Regular Surveys: Detection frequency based on facility type
  • Technology-Driven Monitoring: OGI, UAVs, and AI-assisted detection
  • Rapid Response: Immediate corrective actions to prevent emissions

Leak Detection and Repair (LDAR)

Our LDAR solution surpasses industry standards through the use of advanced technology and strict inspection protocols, effectively detecting and mitigating fugitive emissions of volatile organic compounds (VOCs).

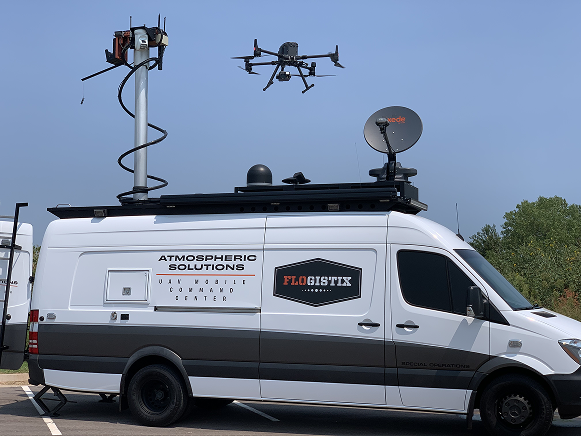

Flogistix UAV mobile command center
Dashboard mockup

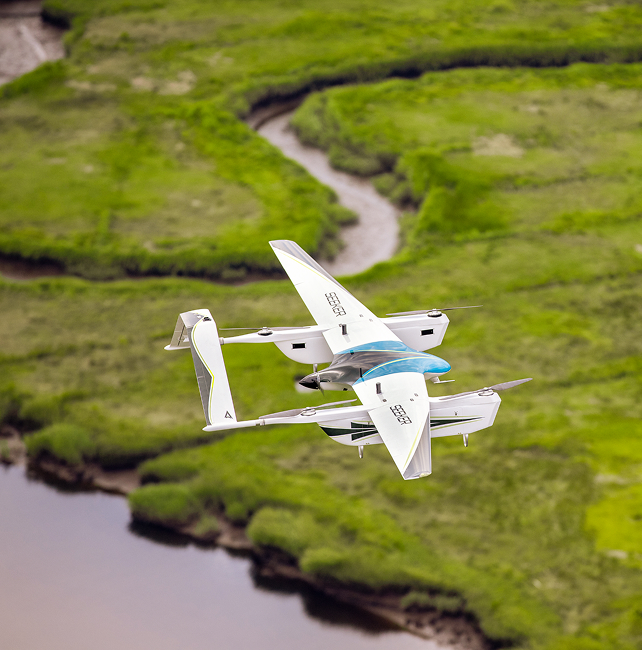

Get More Capabilities With The SEEKER

Our fixed-wing UAV, developed and produced by Commaris, a division of Flogistix, features a long-endurance capability, sustaining over two hours of flight time without requiring a battery change. This efficiency saves time and reduces costs, while accommodating multiple payload configurations.
2+ hours of flight time on a single charge
Fully composite airframe
Payload lift capability of up to 10 pounds
Maximum speed of 70mph
Virtually silent above 500 feet
AGL Assembled in less than 3 minutes
Large array of payload options

LiDAR, 2D & 3D Modeling

Flogistix utilizes a state-of-the-art camera that goes beyond conventional aerial imaging by offering LiDAR, 2D, and 3D scans. These technologies produce detailed, high-quality layered images and precise spatial data, enabling efficient mapping and analysis of facility layouts and large land areas.
Explore LiDAR, 2D & 3D Modeling
LiDAR image of oil and gas equipment

Methane Leak Detection Tools

Flogistix transforms methane leak detection with our cutting-edge UAV-mounted systems, utilizing a sophisticated blend of advanced laser technology, high-resolution visual sensors, and a multi-gas detection sniffer. This integration offers unparalleled precision in identifying and analyzing methane leaks.

Photogrammetry, LiDAR, and 2D Modelling & 3D Mapping

Zenmuse P1 (Photogrammetry)

High-resolution photogrammetry and orthophoto generation
  • High Resolution: Full-frame 45 MP sensor for detailed imagery
  • Global Shutter: Reduces motion blur for better image quality
  • 3-Axis Stabilization: Provides stable images even in windy conditions
  • Smart Oblique Capture: Automatically adjusts the camera angle for optimal oblique imagery
  • TimeSync 2.0: Synchronizes the flight controller, camera, and RTK module for precise geotagging
  • Surveying Accuracy: High-precision data suitable for mapping and surveying
  • Wide Coverage: Covers large areas efficiently, improving operational efficiency

Zenmuse L1

LiDAR-based 3D mapping and point cloud generation
  • LiDAR Sensor: Integrates a Livox LiDAR module for detailed 3D point clouds
  • RGB Camera: Includes a 20 MP RGB camera for true-color imagery
  • High Point Density: Capable of capturing high-density point clouds (up to 240,000 points per second)
  • Accuracy: High accuracy in measurements (vertical accuracy of 5 cm and horizontal accuracy of 10 cm)
  • Real-time 3D: Real-time point cloud visualization and processing
  • IP54 Rating: Weather-resistant, suitable for various environmental conditions
  • Inertial Measurement Unit (IMU): Provides enhanced accuracy by correcting data based on sensor movement
  • Efficient Data Processing: Integrated with DJI Terra for efficient post-processing and data analysis

Multi-Sensor & Inspection Tools

Zenmuse H20 Series

Multi-sensor suite for detailed inspection, including visual, thermal, and rangefinding capabilities
  • Multiple Sensors: Combines a wide camera, zoom camera, and laser rangefinder
  • Wide Camera: 20 MP sensor with a 23x hybrid optical zoom
  • Zoom Camera: Up to 200x maximum zoom capability for detailed inspections
  • Laser Rangefinder: Accurate distance measurement up to 1200 meters
  • Thermal Imaging (H20T model): Includes a thermal camera for temperature measurements and thermal mapping
  • Night Vision: Suitable for low-light and nighttime operations
  • AI Capabilities: Features AI-based functions for object detection and tracking
  • Waterproof: IP44 rating, resistant to water and dust, allowing operation in various conditions
  • Stabilization: 3-axis gimbal stabilization for stable imagery and data collection

Gas Detection & Measurement Sensors

4Dv2 Sniffer

A multi-gas detection system that creates real-time 2D or 3D maps of gas concentrations
  • Detect methane, H2S, VOCs and hydrocarbons
  • Built-in cellular connectivity
  • Different warning lights alert to type of gas detected
  • Captures geo-referenced and time-stamped gas and particle concentrations
  • Senses up to 9 gases and particle concentrations at one time
  • Operating temperature of -20 to 50 degrees Celsius and can work in light rain

U-10 Laser

A drone-mounted methane detector that uses lasers to identify leaks
  • Measures size of plume in feet and parts per million (ppm)
  • Detect methane 5 to 50,000 ppm from 300 feet away
  • Identifies a specific natural gas waste source
  • Operating temperature of -20 to 50 degrees Celsius and can work in light rain
  • Unlimited storage space
  • Operated automatically or manually

Olympus Ventus OGI Midwave Camera

Visual detection of gas leaks
  • Detects 20+ gases including methane, H2S, and SO2
  • Utilizes a 640 x 512 focal plane array
  • 25mm lens with a 4X optical zoom
  • Analog and digital outputs
  • HOT (high operating temperature) MWIR (middle wavelength infrared) camera
  • Low SWaP platform built for surveying large areas of infrastructure
  • Operating temperature of -35 to 65 degrees Celsius and can work in light rain

Purway CH4 Laser Methane Leak Detector Model II

Combines a laser for precise detection with a visible light sensor for real-time visualization of methane leaks
  • Extended Detection Range: A 300-meter detection capability
  • Rapid Response: A 10ms reaction time for immediate detection
  • Detailed reporting of concentration and GPS identification of leak location
  • Sensor Measurement accuracy: ±10% (100~50,000 ppm*m)
  • Long Distance Laser Rangefinder
  • Sensitivity: 5ppm*m
  • Sampling frequency: 100KHz
  • Route function: route planning, KMZ file import

Want to learn more?

Talk to one of our experts today to learn more or request a personalized quote for your operation.
